Porta~Pull FXPs

When it comes to designing tools for the Electrical trade, it's the input received from electrical contractors like you that ultimately helps deliver a cable tugger that will meet the everyday demands of electrical cable pulling. The new Porta~Pull FXP 3000 Weighs only 60 lbs. This rugged one-of-a-kind Tugger offers amazing power and pulling performance. The Porta~Pull's ultra compact design allows it to be carried easily to the jobsite for a fast one man setup. A powerful 1 HP motor provides upto 3000 lbs of brute pulling force, enough to get the most difficuit cable pull done quickly. When the job is complete the Porta~Pull's design allows it to be compacted for easy storage. NO ASSEMBLY REQUIRED NO CONDUIT ADAPTERS NEEDED SELF-CONTAINED POWER DRIVE SAFETY FOOT SWITCH INCLUDED TRIPOD HEAD KIT INCLUDED (see below) Your Price $2249.00 Note: We offer FREE UPS ground freight on all Porta Pull Cable products, which will be shipping from Florida.

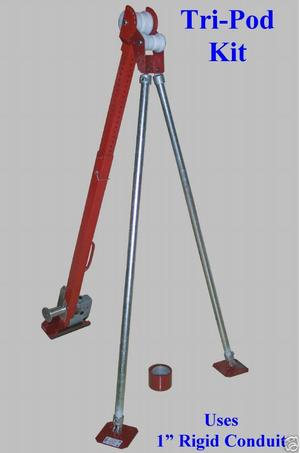

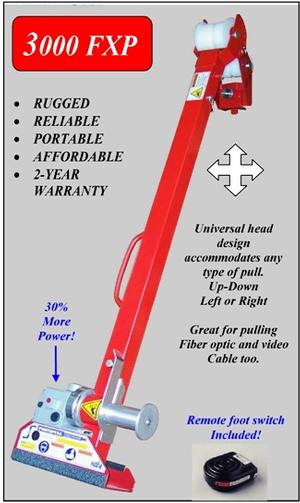

Porta~Pull 3000 FXP Features: Planetary gear design delivers smooth power to Capstan. 30% more pulling force than competitive models. Heavy duty powder coated frame Stainless Steel Hardware. 1 HP Single Speed Motor and Gearbox. Attaches to any size conduit (No Adapters Required) Remote foot safety switch included. Extends over 9ft in length. Full 2-year warranty Specifications: Length:(Retracted-48") Length:(Extended-108") Weight: 60 lbs. Power: 1 HP 120 VAC/8Amp Pulling force: 3000 lbs Continuous Pulling speed at no load: Pulling speed at 2000 lbs: 18 FPM Pulling speed at 3000 lbs: 14 FPM Tripod Setup: The 3000 FXP can be used with a tripod for vertical pulls from an underground conduit. FREE TRIPOD KIT INCLUDED You would add your own 1 inch rigid conduit for the legs.

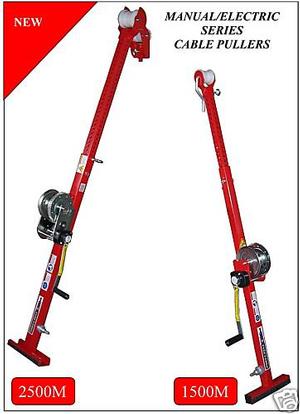

NEW MANUAL / ELECTRIC CABLE TUGGERS Can be operated with or without power Works with any standard 1/2" cordless or power drill (Requires 2 person operation when using a power drill) 1500-2500M SERIES FEATURES: Heavy duty braking winch for positive rope control. Converts quickly from manual to power drive. Uses standard 3/8 double braided pulling rope. Compact, lightweight design carries easily to jobsite. Great for remote locations, 2-year warranty. 1500M SPECIFICATIONS: Dimensions: 12" wide x 7" high x 48" length Weight: 35 pounds Pulling capacity: 1500 pounds Pulling speed: 40 feet per minute w/ drill Conduit adapters: 1/2" thru 2" included Capability: 6 x 4/0 awg cable 250' thru 3 x 90's Recommended rope size: 3/8" polyester braided PortaPull 1500M $999.00 2500M SPECIFICATIONS: Dimensions: 12" wide x 10" high x 48" length Weight: 55 pounds Pulling capacity: 2500 pounds Pulling speed: 25 feet per minute w/ drill Conduit adapters: N/A Capability: 3 x 500 kcmil cable 500' thru 3 x 90's Recommended rope size: 1/2" polyester double braided PortaPull 2500M $1399.00
